EVOBOX

EVOBOX Equipment

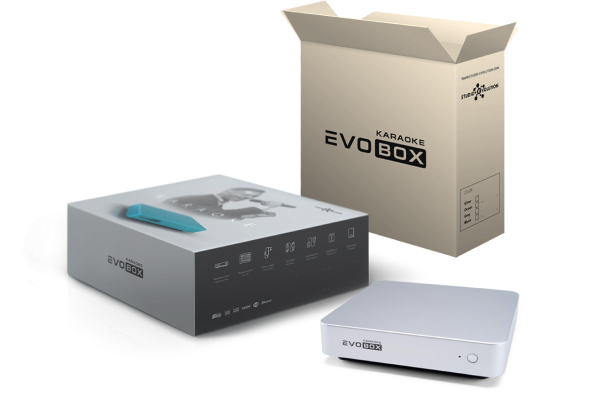

The EVOBOX karaoke system ships in a branded gift box. To prevent damage during transportation, it is also packed into cardboard box.

In the Box

EVOBOX karaoke system
Bluetooth RC
2RCA-2RCA audio cable
HDMI cable
Power Supply
AA batteries, 2 pcs.
User manual

EVOBOX song database

TOP-1800 international songs
TOP-200 foreign songs
Any 100 songs from the Evolution catalog available for free download
EVOBOX has the ability to purchase any song from the full Studio Evolution's karaoke catalog at a single price per song.

Specification of karaoke system EVOBOX

EVOBOX colors

Black
Graphit
Silver
Ocean
Ruby
Gold

Dimensions and weight of the karaoke system

  • Height: 49 mm
  • Width: 198 mm
  • Depth: 198 mm
  • Weight: 870 g
  • Gross weight: 3 kg

Karaoke system
control

Bluetooth remote control

Application for smartphone, tablet

EvoNet for iPhone
EvoNet for Android smartphones
EvoControl for iPad
EvoControl for Android tablets

Housing material

Anodized aircraft-grade aluminum

Audio inputs

Microphone inputs: balanced TRS 6.3 (Jack) (5), 2 pcs.

Maximum Mic Input Gain: 32.5 dB

Maximum input amplitude: +0.14 dBu (0.788 Vrms)

Input signal-to-noise ratio: -95.9 dB (A-weighted)

Dynamic Range: 95.7 dB

Harmonic distortion + noise: 0.0011%

Bandwidth: (+/- 0.5 dB) 50 Hz-20 kHz

Channel Interpenetration: -95.3 dB

Input impedance: 25 kOhm

Audio ADC: Asahi Kasei Microdevices AK5703

Audio outputs

Stereo output: RCA (6) (2 pcs).

Output signal-to-noise ratio: 99.3 dB (A-weighted)

Dynamic Range: 99.4 dB

Harmonic distortion + noise: 0.005%

Bandwidth: (+/- 0.5 dB) 20 Hz-20 kHz

Maximum output amplitude: +4.7 dBu (1.34 Vrms)

Output impedance: 470 ohm

Audio DAC: Asahi Kasei AK4430

Video

Maximum image resolution 4K UHD (3840 × 2160)

Supported file formats

Video: MOV, AVI, MP4, MKV

Sound: WAV, OGG, MP3

Graphic: PNG, JPG, JPEG

Karaoke: EK2

Connectors &
Interfaces

Wi-Fi 802.11ac support. Dual band (2.4 GHz and 5 GHz)

Bluetooth 4.1 Low Energy

HDMI 2.0 (2), 2 pcs.

USB Type-A (4), 2 pcs.

Gigabit LAN (RJ45) (3)

Power connector (1)

* For image display only.

Drives

SSD capacity — 120 GB

System

CPU: Quad Core Cortex-A53

RAM DDR4: 2 GB

Graphics subsystem: Mali-T820 MP3 GPU

Other

Power: 12 V / 2 A

Power Consumption: 24 W

Working temperature range: 0-50 ºC

Shipping box dimensions (W×H×D), mm: 313×124×316

Manual EVOBOX
