Specification and complete set of SE • 200D microphones

Microphone system SE • 200D comes in a branded gift box. Inside you will find everything you need to connect to a karaoke system and comfortably use microphones.

What's in the box?

Microphones, 2 pcs

Receiver

Balanced audio cable XLR‑TRS, 2 pcs.

Power supply unit

Li-ion batteries 2 pcs

User's Guide

Charging cable

Anti-rolls, 2 pcs

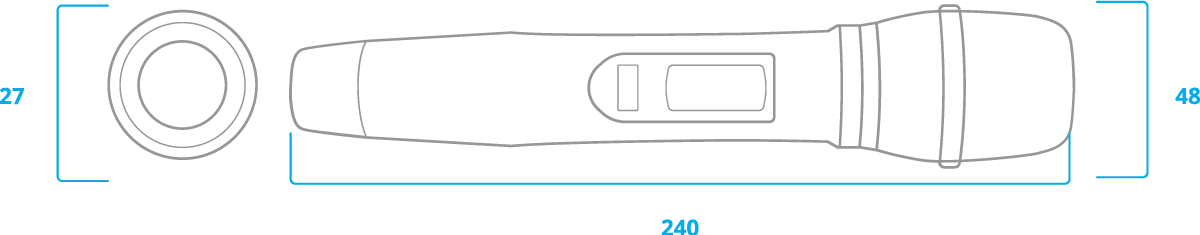

Dimensions and weight of microphones

Length: 240 mm

Diameter: 48 mm

Case diameter: 27 mm

Weight: 250 g

Main Features

Frequency range used: 660 — 690 MHz

Digital audio transmission technology

Unique 16-bit pilot ID technology prevents crosstalk even on the same frequency

Ultra short audio delay: up to 3 ms

Sampling rate: 48 kHz

Frequency response: 30 — 200 Hz

Settings via the menu on the color LCD display

Automatic frequency scanning and spectrum display

Working distance: up to 40 m

Specifications

Microphone

Frequency range used:
660 — 690 MHz

Operating frequency band:
30 MHz

Frequency switching:
IR sync

Output Power (RF):
9 MW

Side emissions:
< - 50 dBс (to carrier, dBc)

Duration of operation from a charged battery:
> 9 hours

Battery:
Lithium-ion battery, size 18500, 3.7 V, 1600 mAh

Receiver

Frequency range used:
660 — 690 MHz

Operating frequency band:
30 MHz

Channel width:
300 kHz

Breakdown into groups:
15 groups of 6 channels

Dynamic range:
96 dB

Total distortion:
< 0.1 %

Antenna:
external, length — 11 cm

Frequency range (audio):
30 — 20,000 (at +/- 2 dB)

Power:
supply lithium battery, type 18500

Signal-to-noise ratio:
96 dB

Reception sensitivity:
-95 dBm

Audio transmission delay:
< 3 ms

Power Supply:
12V, 1 A

Audio Outputs
1 x TRS 6.3 mixed A+V, 2 x XRL balanced A/V
