Specification and grades Evolution Pro2

Evolution Pro2 Basic Specification

Миниатюра Evolution Pro2

«Evolution Pro2»
karaoke system

Каталог песен в интерфейсе караоке системы

Pre-installed track database,
containing Pro and Lite format tracks (includes all updates existing at the time of buying).

Аудио кабели

Audio cables
TRS 6.3-TRS 6.3 balanced stereo 2 pieces.

Провод питания

Network cable

Кабель HDMI

HDMI cable

Linux Evolution

Linux Evolution Operating System

Логотип Evoclub Admin

EvoСlub Admin Series

Evolution Pro2 specification

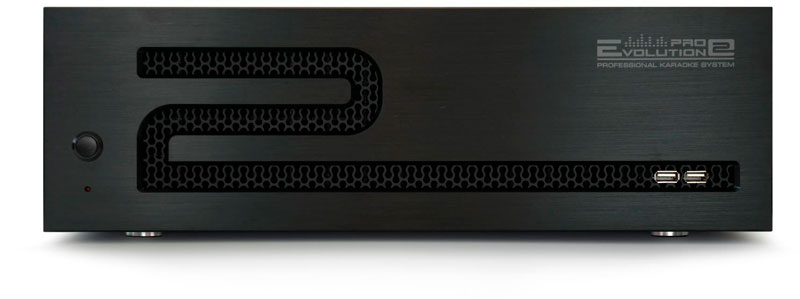

Evolution Pro2 front panel
Караоке-система Evolution Pro2
Supported file formats
Video MOV, AVI, MPEG, MP4, MKV
Audio WAV, OGG, MP3
Graphic PNG, JPG
Karaoke EK2
Audio
Input audio signal standards Analogue: TRS 6.3-TRS 6.3 balanced stereo – 3 inputs
Output audio signal standards Analogue: TRS 6.3-TRS 6.3 balanced stereo – 3 outputs.
Digital signal sampling rate 32 – 192 kHz
Analogue signal sampling rate 8 – 192 кГц
DAC/ADC bits number> 24 bit
Number of microphone inputs 2
Possibility of microphone signal level adjustment Available
USB
Number 7
Connector type USB А
Version 2.0, 3.0
Supported USB storage devices USB flash memory, USB HDD, USB Card Readers
File system FAT32, NTFS
Inputs
Number of microphone inputs 2
Possibility of microphone signal level adjustment Available
Microphone input maximum gain 46 dB
Maximum input amplitude +1.5 dBV (1.2 V RMS)
Input signal-to-noise ratio 113 dB
Dynamic range 113 dB
Harmonic distortions + noise 0,0006 %
Bandwidth (±0.5 dB) 80 Hz — 80 кHz
Crosstalk –130 dB
Input impedance
4,7 kOhm
Audio ADC
AKM AK5385В
Outputs
Input signal-to-noise ratio 108 dB
Dynamic range 109 dB
Harmonic distortions + noise 0,0023 %
Bandwidth (±0.5 dB) 20 Hz – 80 кHz
Crosstalk –105 dB
Output impedance 4,7 kOhm
Audio DAC АК4358
Video
Output video signal standards HDMI, DVI, VGA, Composite (5 outputs)
Display maximum resolution 1920*1080″, 60 Hz (1080 р)
System
Operating system Linux Evolution™
Total HD storage capacity 2 TB
Optical drive DVD
LAN (Ethernet) connector Available
Ethernet bitrate 100 Mbit/s
Wi-Fi No
SATA 3.0 Available
Other characteristics
Power supply ~220 V ±10% 50 Hz ±1 Hz
Power consumption 550 W
Shipping box dimensions
(WxHxD) mm
507x255x470
Device dimensions
(WхHхD) mm
434x166x404
Net weight 10,8 kg
Gross weight
12,5 kg
Operating temperature range +5…+40 ºC
Humidity 10–80%


3875
EURO
EURO
The price of Evolution Pro2

Buy
Evolution Pro2 purchase order
3875 EURO
By filling out the form you agree to
the Privacy Policy and User Agreement

Do you have an Evolution Pro or a Lite karaoke system? Make a profitable exchange of it for an Evolution Pro2.
Learn more
