Specifications and equipment Evolution Lite2 2019

Standard Evolution Lite22019 set

Миниатюра Lite2

The Evolution Lite22019 karaoke system – 1 unit

Пульт ДУ для Lite2

Remote control – 1 pc.

Блок питания

Power supply – 1 pc.

Wi Fi антенны для Lite2

Wi-Fi antenna – 2 pc.

Кабель HDMI

HDMI cable – 1 pc.

Аудио кабели Lite2

RCA-RCA audio cables – 2 pc.

Lite format songs for Evolution Lite2

Thousands of songs in Lite format

Песни в формате PRO
Original backing tracks in Pro format
The amount of songs depends on the set you choose
CDG songs for Lite2

Thousands of songs in CDG format

фоновые песни между выступлениями в караоке

Region-specific track databases

Cover versions of World ROCK hits in Russian

Linux Evolution

Linux Evolution operating system

Thousands of official video clips
synchronized with karaoke tracks
Duet karaoke songs package
with color singer-specific fonts
Пакет дуетних пісень

The Evolution Lite22019 Specification

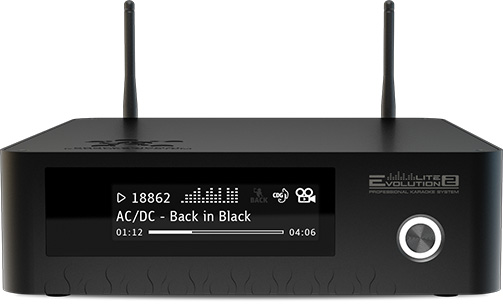

Front Panel of the Evolution Lite22019
Внешний вид караоке-системы Evolution Lite2
Supported File Formats
Video MOV, AVI, MP4, MKV
Sound WAV, OGG, MP3
Graphic PNG, JPG, JPEG
Karaoke EK2
СAudio input standards Analog: TRS 6.3 balanced / unbalanced – 2 pc.
Audio output standards Analog: RCA – 2 pc.
The sampling frequency of the digital signal 32, 44.1, 48 kHz
The sampling frequency of the analog signal 8, 11.025, 16, 22.05, 32, 44.1, 48 кkHz
Bit width DAC/ADC 32/24 bit
Connectors 2
USB connector type USB А
Version 3.0
Supported USB flash drive types USB flash memory, USB hard disk, USB card readers
File system FAT32, NTFS
The number of microphone inputs TRS 6.3 (Jack) – 2 pc.
The ability to adjust the level of the microphone signal Yes
Maximum microphone input gain 32,5 dB
Maximum input amplitude +0,14 dBu (0.788 Vrms)
Input signal/noise ratio -95,9 dB (A-weighted)
Dynamic range 95,7 dB
Harmonic distortion + noise 0,0011%
Bandwidth (+/- 0,5 дБ) 50 Hz — 20 kHz
Cross-channel penetration -95,3 dB
Input resistance 25 kOhm
Audio ADC Asahi Kasei Microdevices AK5703
ОInput signal/noise ratio 101,6 dB (A-weighted)
Dynamic range 101,7 dB
Harmonic distortion + noise/strong> 0,0005%
Bandwidth (+/- 0,5 dB) 20 Hz – 20 kHz
Cross-channel penetration -99,7 dB
Maximum output amplitude +10,9 dBu (2,71 Vrms)
Output resistance 470 Ohm
Audio DAC Asahi Kasei Microdevices AK4490
Video output standards HDMI
The maximum screen resolution 1920*1080″, 60 Hz (1080р)
Operating system Linux Evolution
The total amount of hard drives 1 x 1 TB, 1 x 2 TB (for the Premium set)
Optical drive No
LAN (Ethernet) connector Yes
Ethernet speed 100 Mbps/с
Wi-Fi Yes
Power supply DC 12B/5A
Power consumption 60 W
Transport box size, mm 300×360×155
Device size, mm 200×200×56 (60 with bumpons)
Net weight 3.28 lb (1,49 kg)
Gross weight 9.25 lb (4,2 kg)
Operating temperature range/strong> +5…+40 ºC
Tolerable humidity level 10–80%
Evolution Lite22019 price

* basic set with full Lite format song baseand TOP-1000 Pro format songs

2000 USD
temporarily unavailable
The price of the Evolution Lite22019 Plus*

*all songs in Lite and Pro format, an ideal amount of the official video clips

The price of the Evolution Lite22019 Premium*

*the song catalog is the same as in the Evolution Pro2 + most region-specific song packages, 2 TB hard drive
